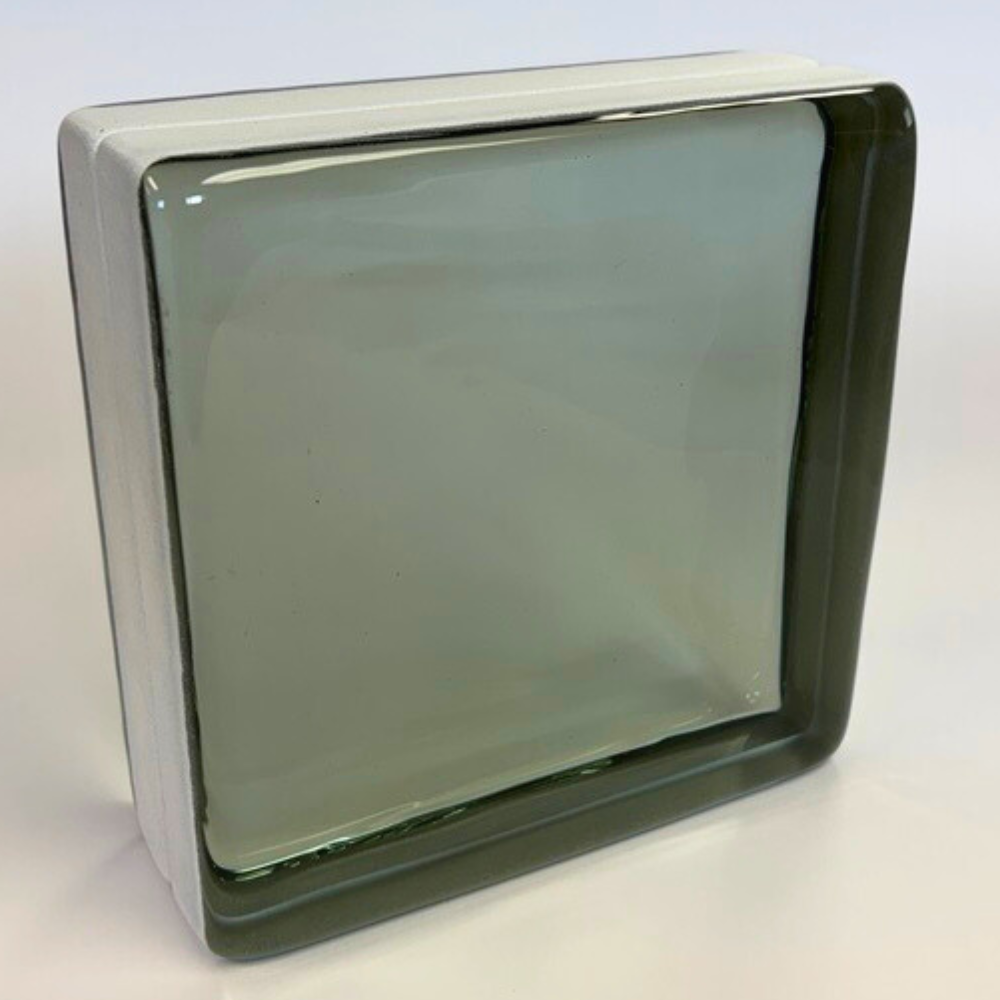

8x8x3 Clear Vistabrik®
$42.11
8x8x3 Clear Vistabrik® by Seves Glass Block™ is a solid 3″ thick glass block without the hollow cavity found in traditional glass blocks. Designed specifically for windows, these blocks feature a 90-minute fire rating and are an excellent choice for commercial applications requiring high security and maximum light transmission.
Get in touch with the experienced team at Glass Block Warehouse to make your next project one to remember.
Actual Sizes: 7 3/4 x 7 3/4 x 3 1/8
Weight: 15.40
Heat Transmission U-Value (BTU/hr ft2 °F): .70
Thermal Resistance R-value: 1.42
Privacy: Minimal
Fire Rating: 90
Visible Light Transmission: 90%
Shading Coefficient: 49.40
Sound Transmission S.T.C. (dB): 53
Solar Heat Gain Coefficient: .75-.78
SGB-041 North American Design Guide 5.12.2022
SGB-002 Mortar Install System EN_ES
SGB-023 Vistabrik
SGB-035 – Vistabrik Literature
N.A.M.I. Vistabrik 90min Fire
04 23 13 – GLASS UNIT MASONRY
SGB-019 Glass Block Panel Anchor & Wire Reinforcement
SGB-018 Fire Rated Brochure
