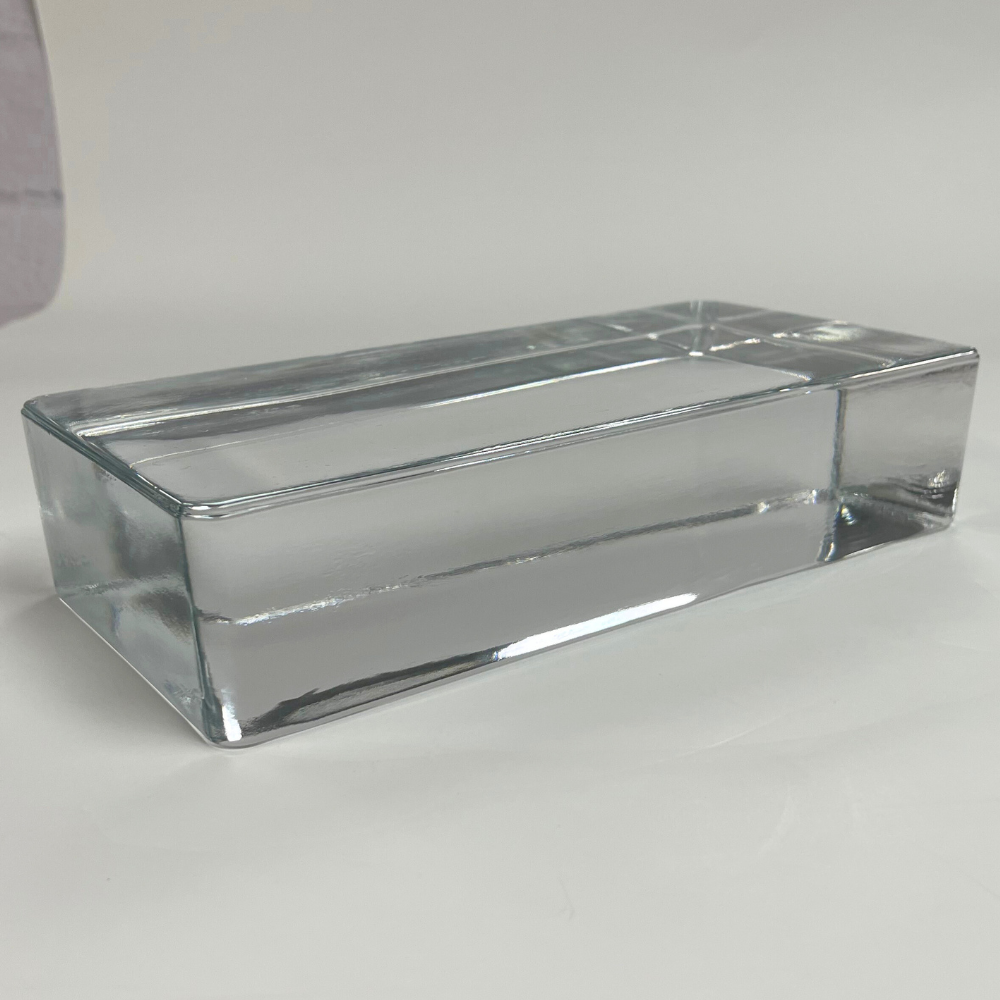

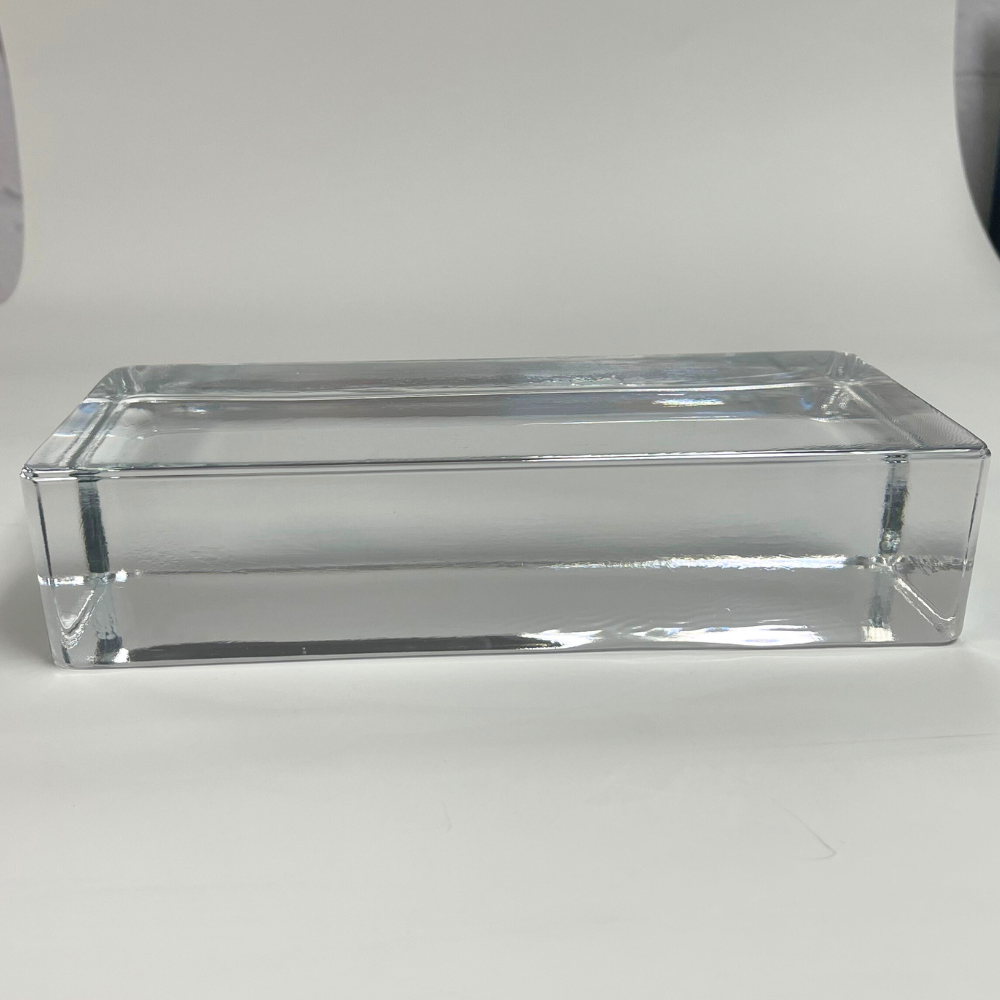

Rettangoloare Neutro Vetropieno®
$28.61
Actual Sizes: 9 1/4 x 2 1/8 x 4 1/2
Weight: 7.70
Heat Transmission U-Value (BTU/hr ft2 °F): .62
Thermal Resistance R-value: 1.61
Privacy: Moderate
Fire Rating: 90
Visible Light Transmission: 44%
Shading Coefficient: 58.60
Sound Transmission S.T.C. (dB): 43
Solar Heat Gain Coefficient: 51
04 23 13 – Vetropieno Mortar Specifications
N.A.M.I. Vetropieno Ret 90min Fire
SGB-034 VetroKWiK Installation System
VP-310-HEAD – Vetropieno in Metal Stud Wall-Detail
VP-311-HEAD – Vetropieno in Metal Stud Wall with Brick Veneer-Detail
VP-320-JAMB – Vetropieno in Metal Stud Wall w Synthetic Plaster-Detail
VP-321-JAMB – Vetropieno in Metal Stud Wall with Brick Veneer-Detail
VP-330-SILL – Vetropieno in Metal Stud Wall with Synthetic Plaster-Detail
VP-331-SILL – Vetropieno in Metal Stud Wall w Brick Veneer-Detail
VP-332-SILL – Vetropieno in Concrete Floor Slab-Detail
VP-350-VERTICAL STIFFENER – Vetropieno Triangular Anchoring Support at Corner-Detail
VP-351-VERTICAL STIFFENER – Vetropieno Intermediate Vertical Support in Multiple Horizontal Panels-Detail
VP-352-HORIZONTAL STIFFENER – Vetropieno Structural Horizontal Support in Multiple Panels-Detail
VP-360-HORIZONTAL STIFFENER – Vetropieno Intermediate Horz. Supp. in Mult. Vert.l Panels – Shelf Angle-Detail
VP-361-HORIZONTAL STIFFENER -Vetropieno Interm. Horz. Shelf Angle Supp. in Vert. Panels-Detail
