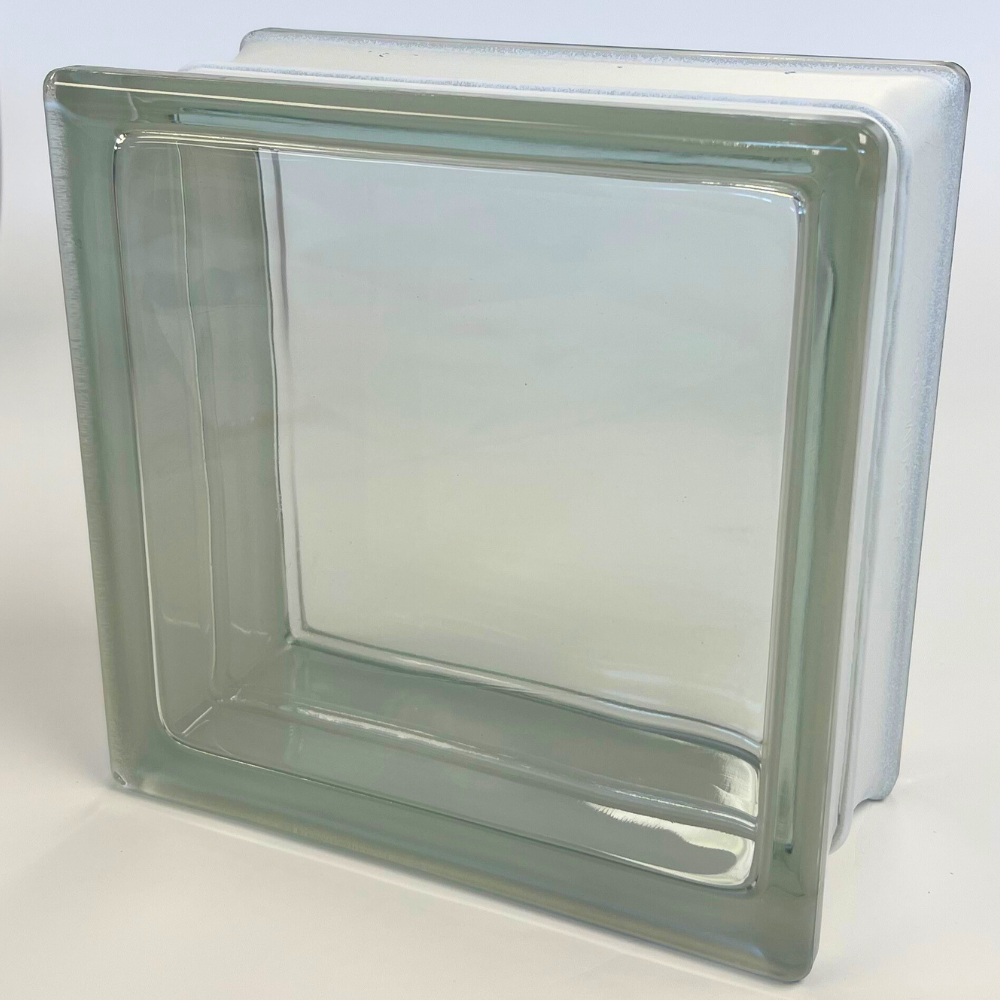

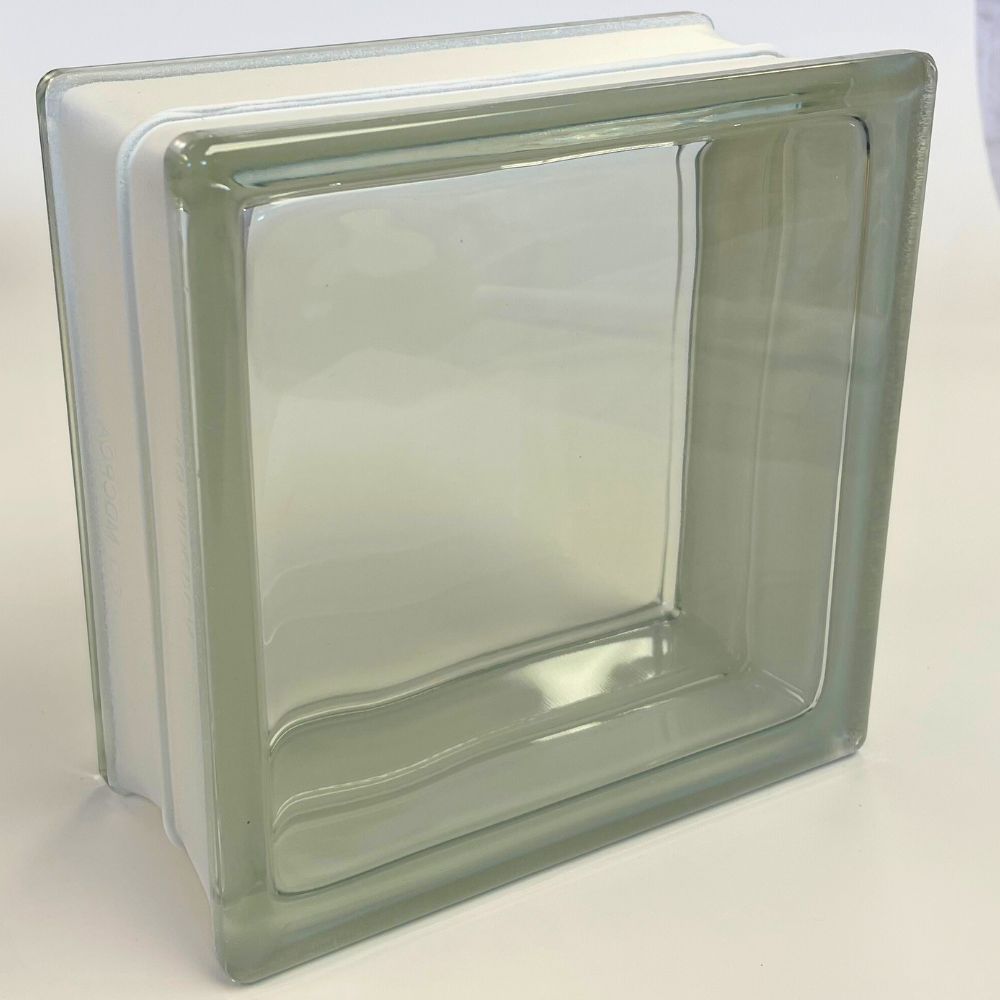

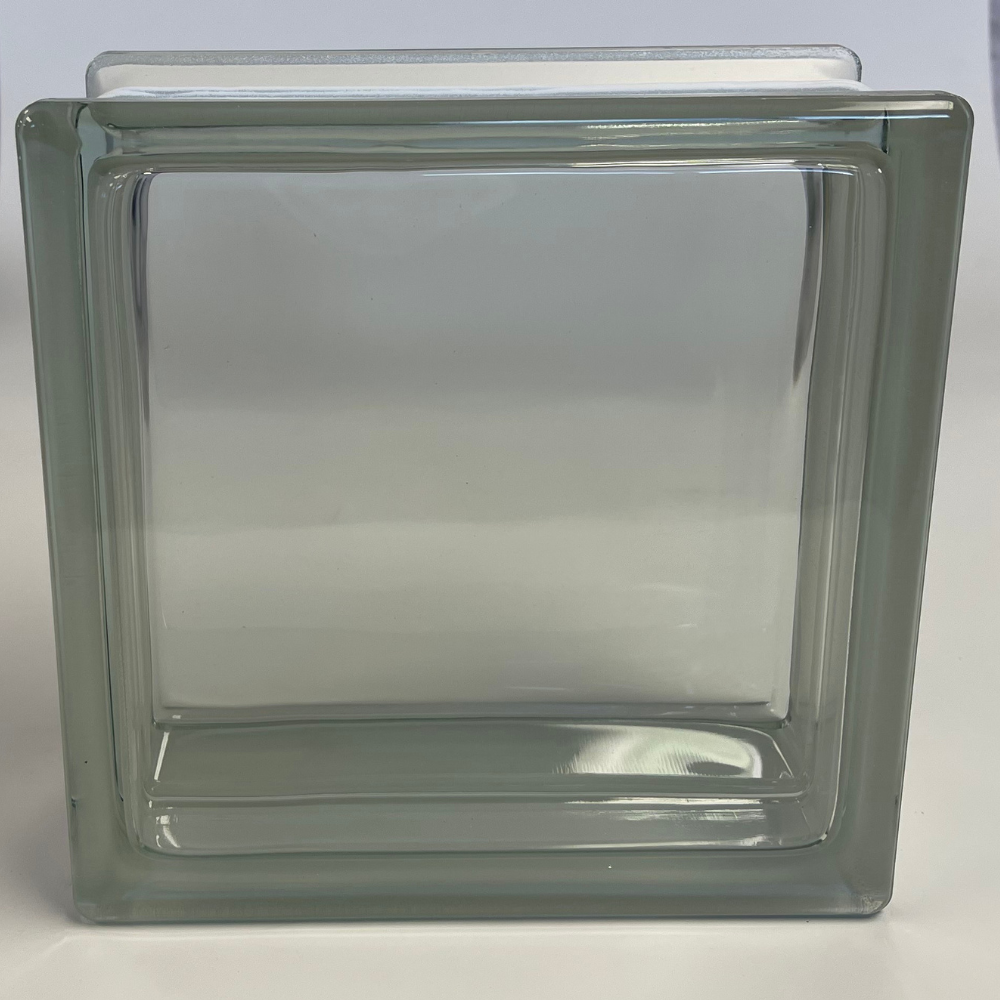

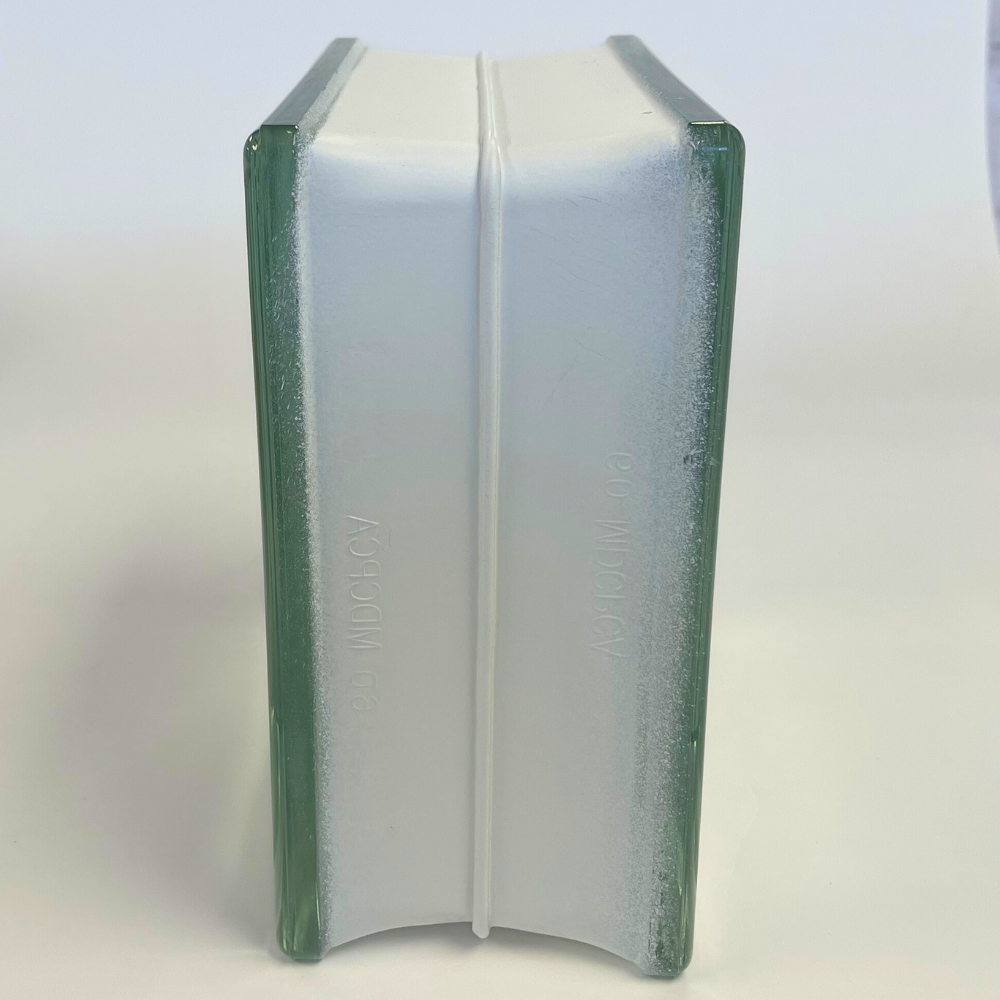

8x8x4 Thickset 60 Clarity
$15.78
Actual Sizes: 7 3/4 x 7 3/4 x 3 7/8
Weight: 7.80
Heat Transmission U-Value (BTU/hr ft2 °F): .61
Thermal Resistance R-value: 1.96
Privacy: Minimal
Fire Rating: 60
Visible Light Transmission: 75%
Shading Coefficient: .65
Sound Transmission S.T.C. (dB): 48
Solar Heat Gain Coefficient: .66-.68
SGB-041 North American Design Guide 5.12.2022
SGB-007 Imperial Line
N.A.M.I. Clarity 60min Fire
04 23 13 – GLASS UNIT MASONRY
SGB-002 Mortar Install System EN_ES
SGB-018 Fire Rated Brochure
SGB-019 Glass Block Panel Anchor & Wire Reinforcement
SEVES 5yr Limited Warranty
